● Main technical parameter:
This machine is an automatic completion from into the bottle, ultrasonic thick wash, the outer wall of bottle fine cleaning, bottle wall to out bottle fine cleaning the full set of the production process, the ultrasonic cleaning and vapor pressure spray cleaning alternate combination way present, it is the most popular, minimum, wash bottles damage rate of transparent degrees, performance stability, the best of the strongest general cleaning equipment.
This machine can use single 9:28, can also with sterilization drying machine, went into the linkage potting units use. Line
QCK washer working principle

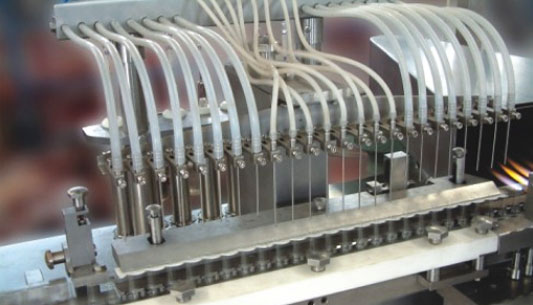

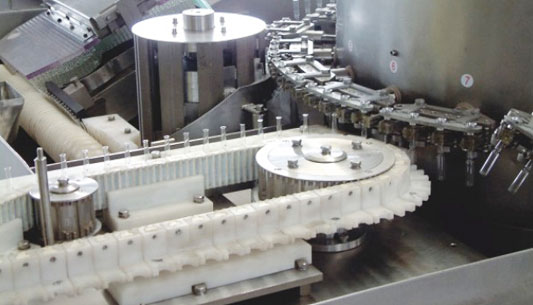

Painted by nets with automatic bottle into the bottle, the spray device will fill a bottle with water, and then into the cleaning trough. In the sink after about a minute of bottle after ultrasonic cleaning, again from the bottle into the ground will be sent to the dragon ascension slides place, improve the slider to bottles from coarse to wash tank ascend and sent to the big drum mechanical hand. With a clip of the manipulator bottle out clamp and flip 180 degrees, the bottle into the state into handstand flush location: the first step by the high pressure water washing the walls of the bottle, and then the first group of spray a needle into the bottle of circulating water rushed (or blunt compressed air will the bottle from), the second group of circulating water rushed the second word circulating water, and the third, fourth group rushed compressed air rushed injection water, 5 and 6 of the group rushed compressed air minimize the residual water bottle inside. Finally the compressed air blowing the outer wall of the bottle. Manipulator, bottle, turn back to bottle up, and a bottle of synchronous belt will push the oven bottle or a bottle of plate, now complete the whole bottle cleaning process.
